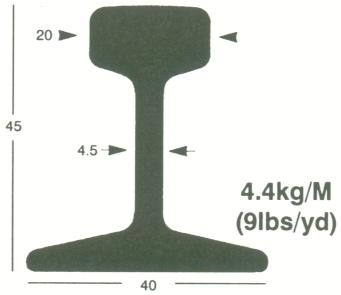

4.4 kg/Metre Steel Rail

Approximate weight per 6 Metre length - 26.4kg

Estimated Weight per Metre - 4.4kg

Approximate number of lengths per tonne - 38 off

Approximate yield of RAIL per tonne - 227 Metres


Price per 6 Metre Length

-ex Hemel Hempstead

-ends not drilled for Fishbolts

-excluding carriage & VAT

1 to 7 lengths P.O.A. each

8 to 14 lengths P.O.A. each

15 to 31 lengths P.O.A. each

32+ lengths P.O.A. each

Produced to quantity order only


Tonneage price - P.O.A.

Rail normally supplied only when appropriate quantities of Fishplates, Fishbolts and nuts are purchased at the same time. Prices as below.

For details of steel sleepering, rail clips, fishplated joint and layout of rail fastenings, click here
use you back button to return to this page.

Finish
Ends are cold sawn, not holed for Fishbolts.
Lengths are 6 Metres plus a cutting allowance of up to +10cm

Fishplates
4 hole plain steel finish - Price On Application (1 pair required for each rail length)

Fishbolts and Nuts
Hex headed M10 x 40mm COH bolts and nuts


Railscrews
Hex headed coach screws, M10 x 70mm, plated, to use railclips with wooden sleepers


Railclips
For use with wood or steel sleepers, punched with a hole to suit 10mm Dia bolts or screws


Rail curving: to customer's requirements per 6m length

Rail end drilling for Fishbolts, 2off 14mm holes per end



All above prices are subject to VAT (20%) where applicable

Delivery not included

Jan 2019
