Point in 12lbs/yd flat bottom steel rail point - Approximately 70ft radius
REF: 1535
Category:
Gauge:

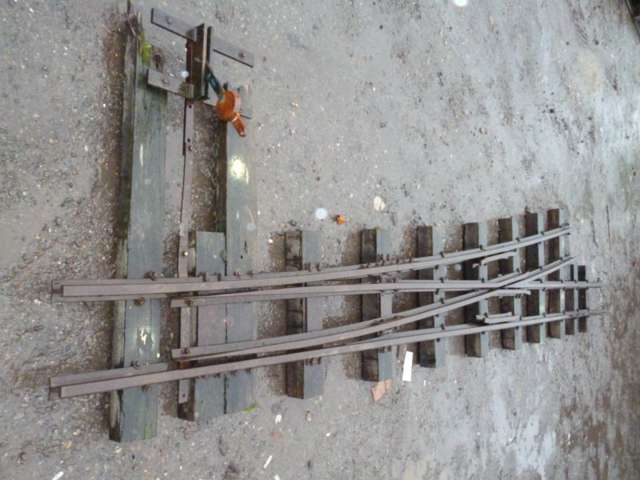

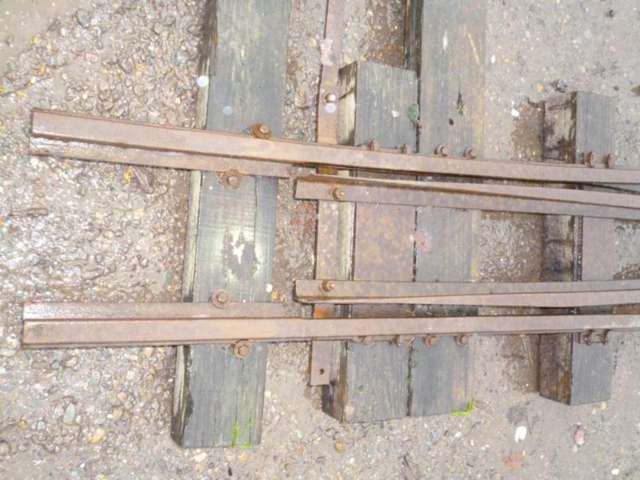

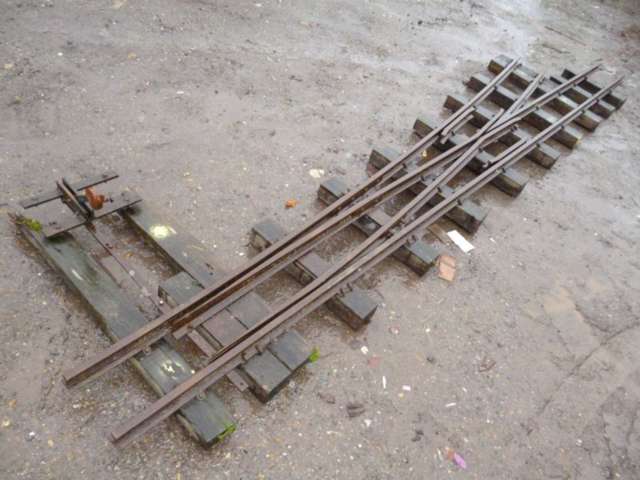

Point in 12lbs/yd flat bottom steel rail point - Approximately 70ft radius
12lbs/yd ASCE rail 7 1/4 inch gauge Left hand with point lever, needs re-sleeping. Rail dimensions as follows, rail head 1 inch wide, 2 inch high and 2 inch wide base. Curved stock rail is 12ft 6 inches long, straight stock rail 15ft long, this could be reduced in length. This point could be re-gauged to 10 1/4 inch by adding the appropriate length between the blades and the crossing. This information can be supplied.This point has a crossing angle of around 1 in 7 1/2 which is approximately 70 ft radius
Price: £ SOLD March 2013 inc.VAT
